Laboratory process equipment

Adsorption process

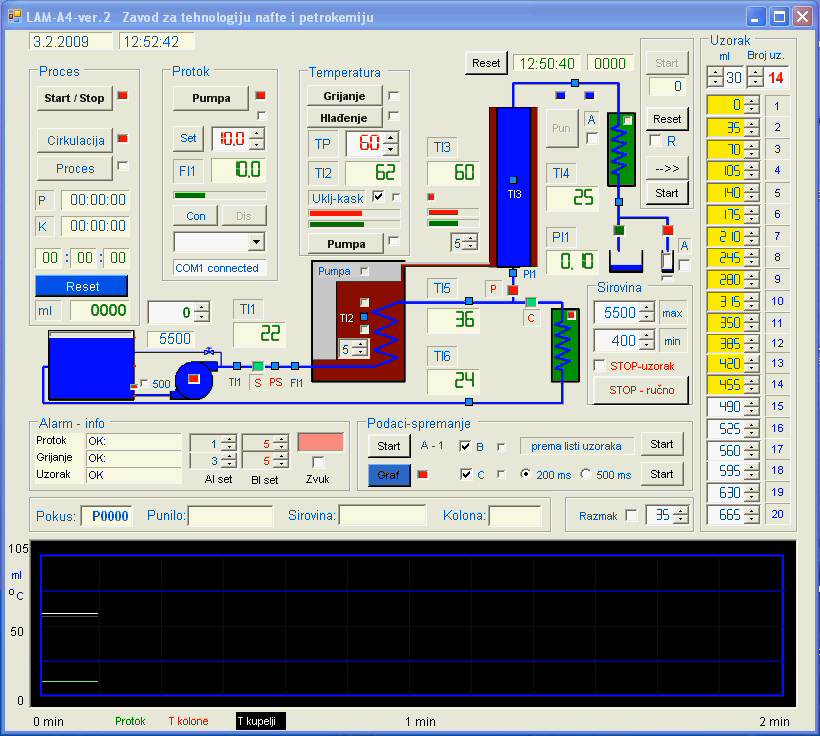

The unit for continuous column adsorption is designed for studying the adsorption process. It insures a precise control and measurement of set parameters, temperature, flow, time and sampling of defined amounts of products in a set time frame. The unit is controlled by a process controller through a corresponding computer interface. The computer program ensures a complete automatization of equipment and maximal flexibility of use. The flow is regulated in the range of 0.1-30 ml/min and the unit is easy to operate and the measurements are iterative and accurate.

Izomerization and Reforming Unit

The unit is designed for conducting experiments on a process of continuous isomerization and reforming in conditions similar to the real process. The device consists of a hydrogen system, system for drying the raw materials, pump for dosing the raw material, tube retractor with a cooler of the retractor outflow, slop container, high pressure separator with a capability of mounting a low pressure separator.The unit is equipped with a process controller, very precise measuring and controlling equipment and an appropriate computer program which ensures easy operation and control of the process unit. The unit is equipped for measuring and controlling 16 process variables and outputs necessary for controlling the solenoid valves, sensor readings and data aquisition. The pump is controlled over an RS 232 interface.During the process, three meters measure the total amount of hydrogen and raw material during the duration of the process and altogether for one type of a catalyst. The interface has a big diagram which enables simultaneous monitoring of up to 6 variables per source. It is possible to adjust the refresh time for the diagram from 15 seconds up to 2 minutes. The interface has an alarm and a blocking system which in case of deviations alarms and blocks individual systems within the security requirements and according to logic plan or the entire unit in case of a breakdown during operation. The system enables execution of certain calculations which are read as variables during the process and can also be shown on the diagram.
